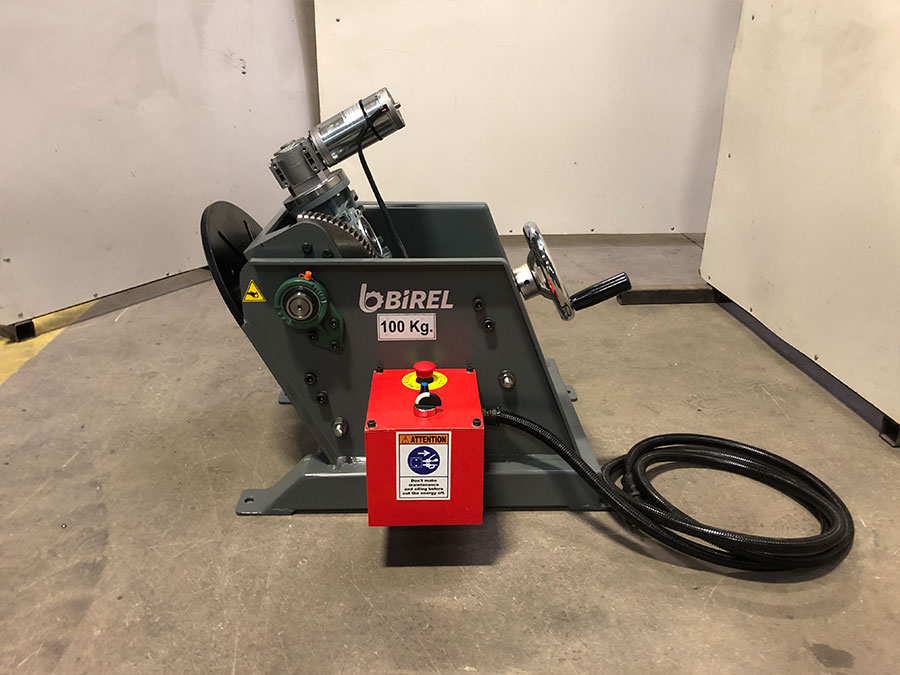

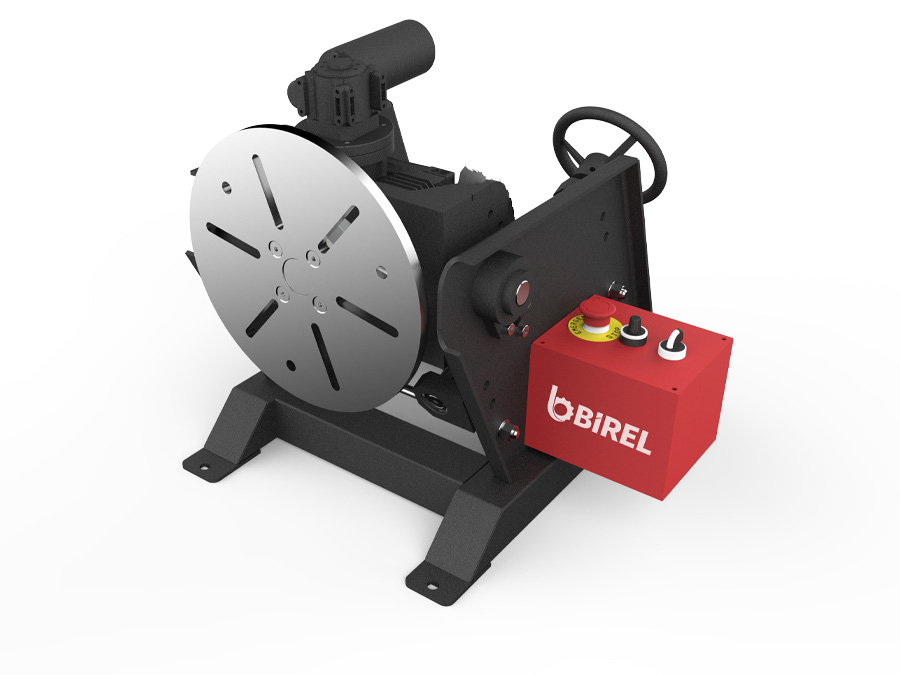

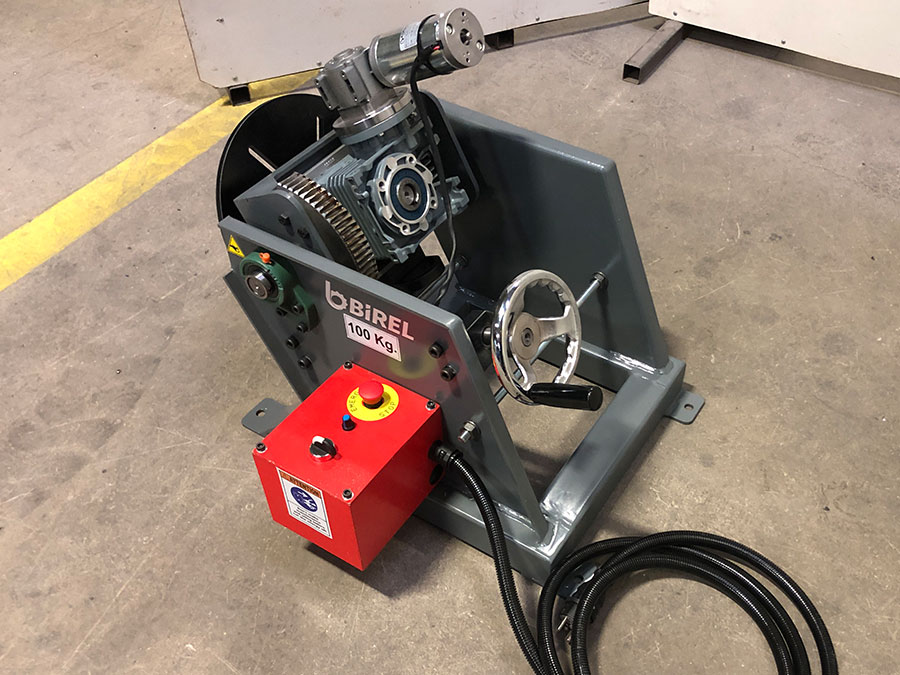

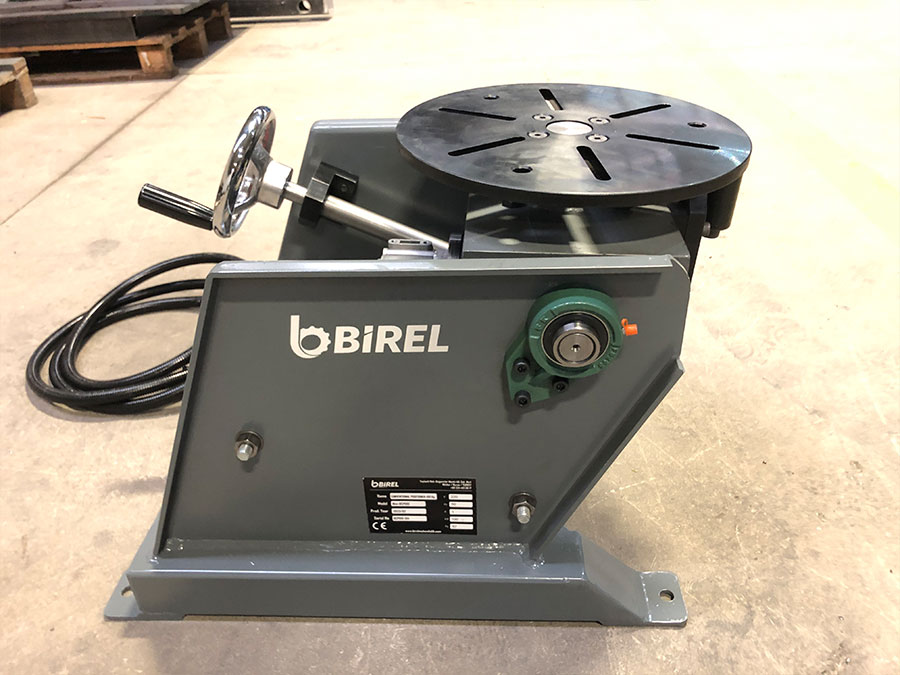

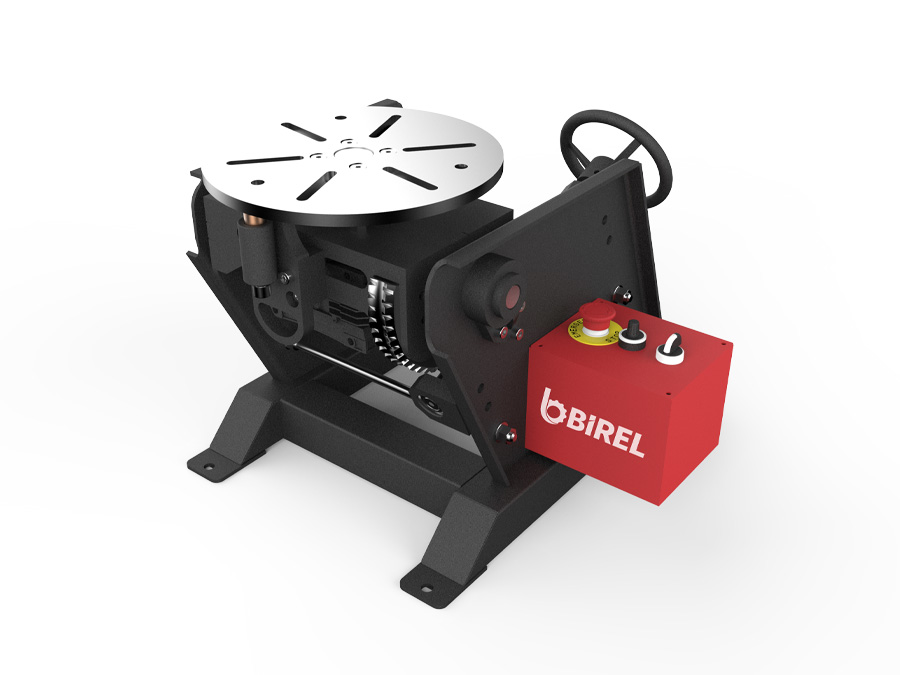

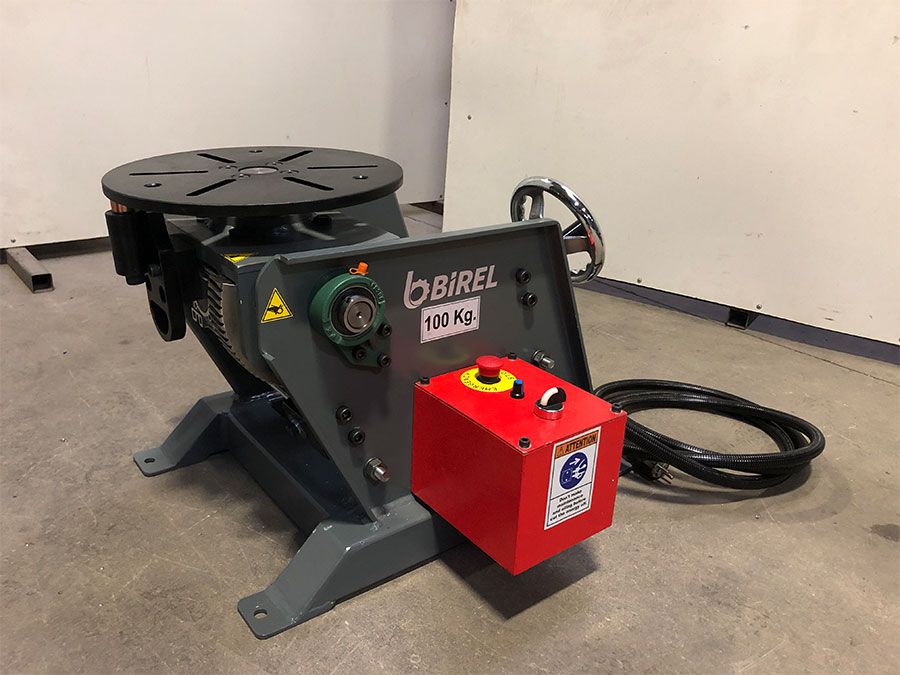

Welding Positioner – Mini BCP

Standard Mini-Conventional Welding Positioner(2AX). Ergonomic, Opportunity of Over Desktop Application, Opportunity of Attaching Manual Chuck, Adjustment of Tilting Angle by means of Manuel HandWheel (0-90°)

Round Worktable with Slots.
Adjustable worktable rotation speed by Potentiometer
Manual Mechanical gear movement for tilting by Hand wheel.
With opportunity of adjusting at every angle within range.
3 m.Power Cable
Standard Machine Colors:
ChassisRAL 7011(Grey)
Sheet Covers:RAL3020(Red )
Power Supply : 220V – (2 phase)
Motor : DC Current
One (1) Year Warranty (wearing parts out of warranty)

T-SE

Round Worktable T-Side Entry Grooved Thick Table Plate

3-Jaw Manual Chuck

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

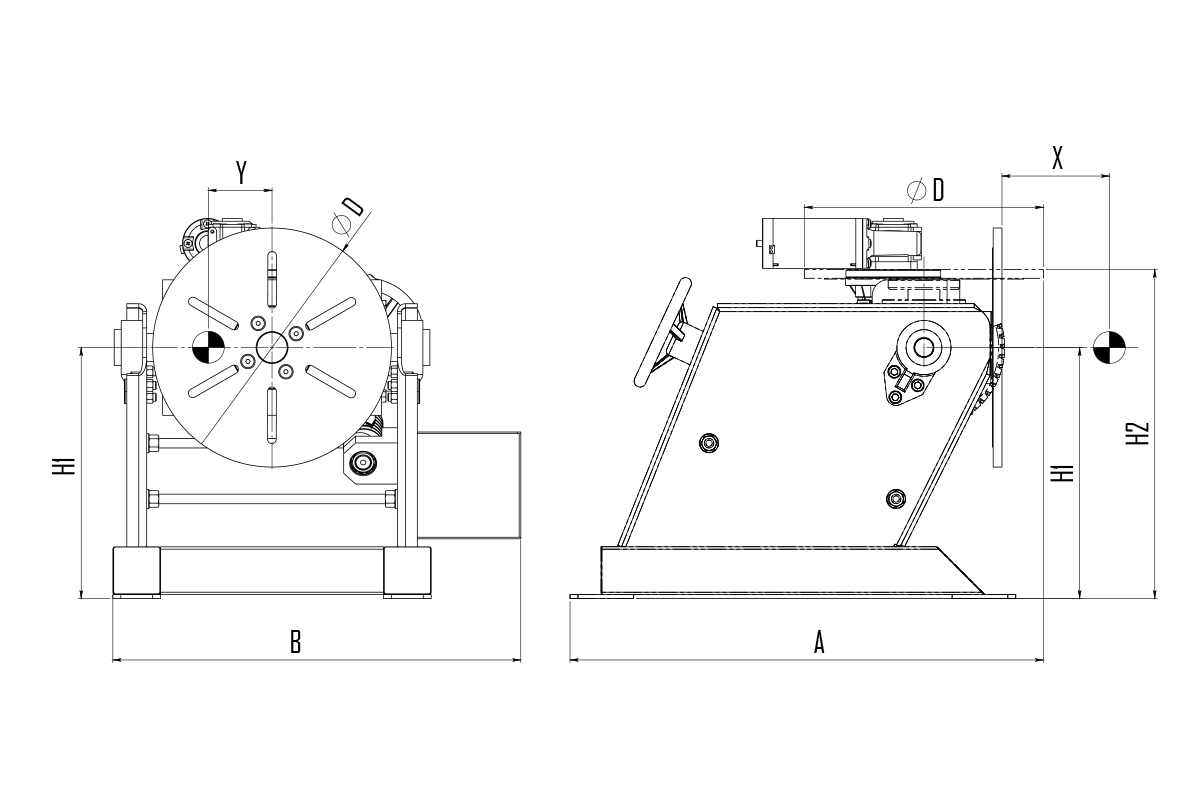

Mini BCP	Sym	Unit	Mini-BCP005	Mini-BCP010
Loading Capacity		kg	50	100
Rotation Speed		rpm	0 - 2,3	0 - 2,3
Max. Rotational Torque		Nm	49	86
Tilting Angle		deg	0 – 90°	0 – 90°
Tilting Torque		Nm	Manual	Manual
Offset Distance	X-Y	mm	Y=50	Y=50
Table Diameter	ØD	mm	250	300
Height (Table Vertical)	H1	mm	315	315
Height (Table Parallel)	H2	mm	411	415
Length	A	mm	570	595
Width	B	mm	463	513
Motor Power of Table		kW	0,1(DC)	0,1(DC)
Tilting		kW	Manuel	Manuel
Weight		kg	47	57
