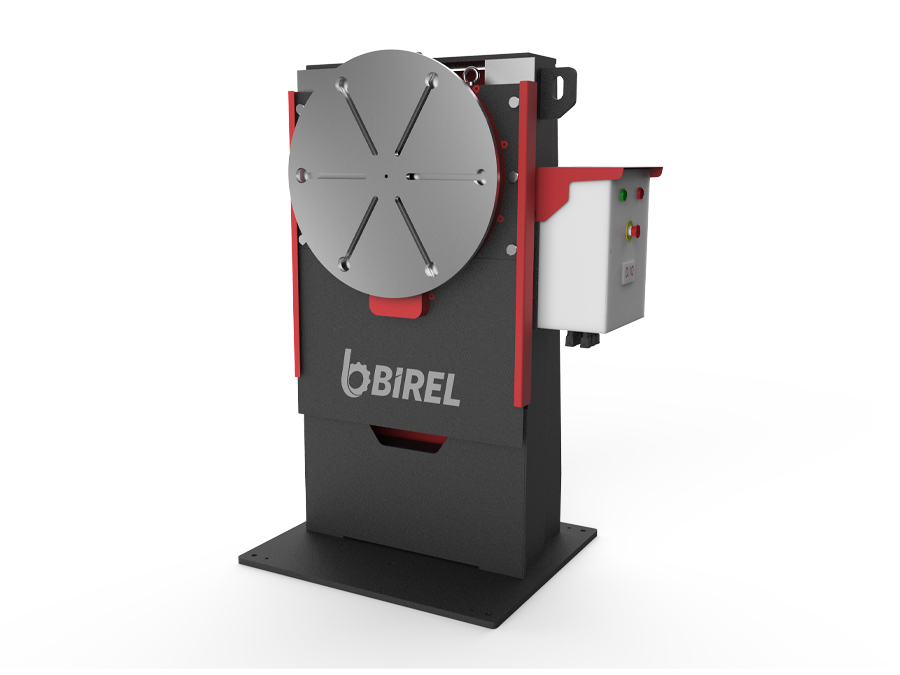

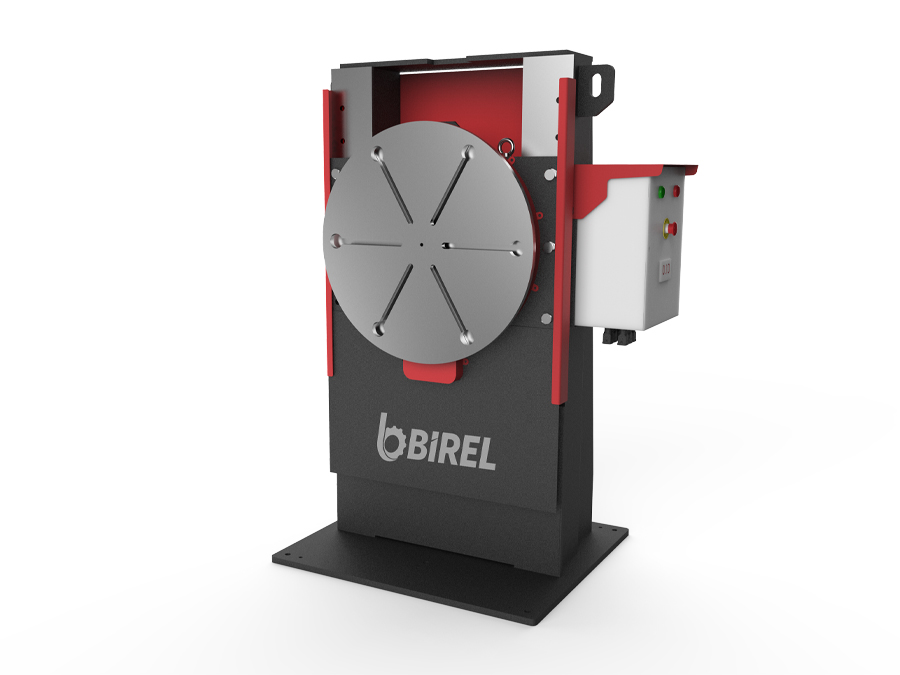

Tube Welding Positioner – BTP

Tube Welding Positioner with Slotted Table & HandBox Cable Remote Control

DFPSE

Double Foot Pedal with Stick and Stop (3m)

OHC

Overhead Hangable Control

WRC

Wireless Remote Control

Download Product Brochure

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

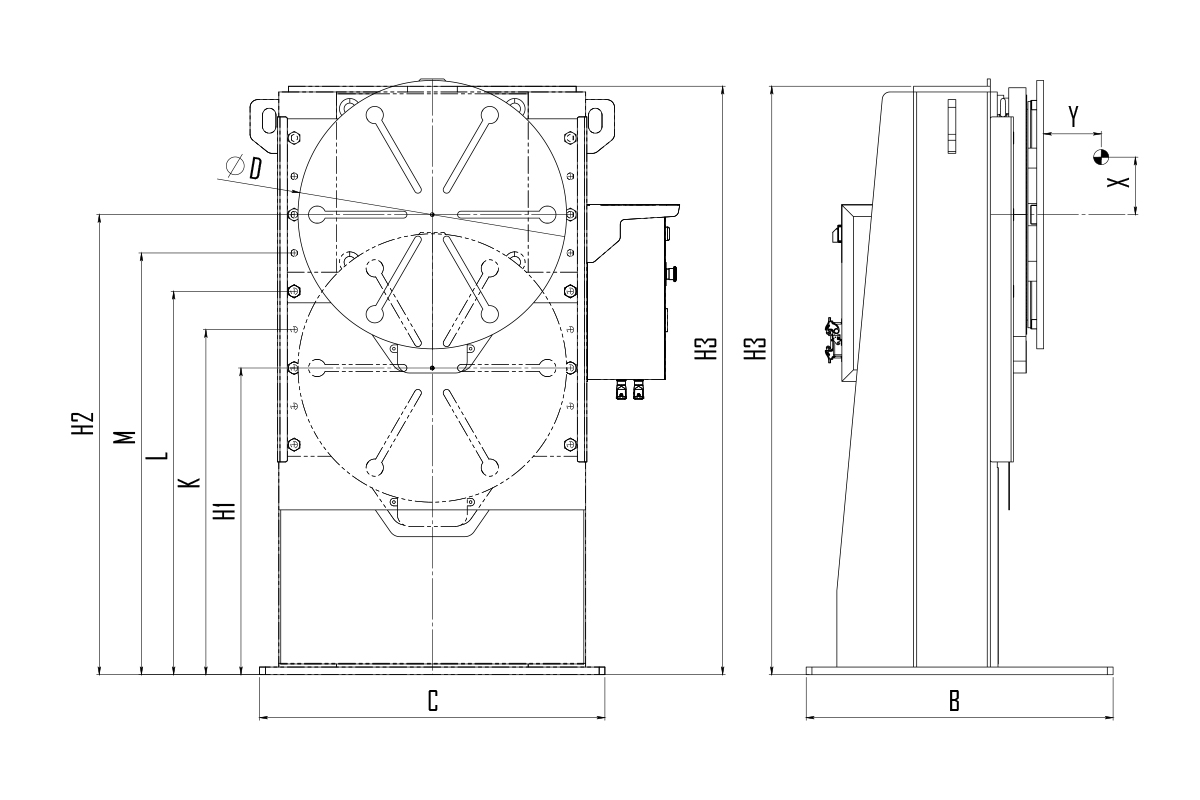

BPP	Sym	Unit	BTP1,5-2AX
Capacity		kg	1500
Rotation Speed		mm/min	0,15 – 1,3
Max.Rotational Torque		Nm	2290
Max.Axial Run-Out	X-Y	Nm	150-300
Max. Welding Current		Amp	700
Table Plate Diameter	ØD		700
Height Min. (1 st Level ) – Max (5th Level)	(H1-H2)	mm	800-1200
Rotator Frame Height 2 nd Level	K	mm	900
Rotator Frame Height 3rd Level	L	mm	1000
Rotator Frame Height 4th Level	M	mm	1100
Length	C	mm	900
Width	B	mm	800
Height	H3	mm	1535
Motor Power of Table	kW	mm	0,55
Motor Power of Table	kg	kg	640
