BCR Mini Pipe Welding Rotator

BCR Mini Pipe Welding Rotator

Pipe Rotator For Welding – Mini BCR

Mini Conventional Welding Rotator. Economical, Easily Operated, Suitable for lower capacities & Smaller diameters.

Mini Conventional Welding Rotator. Economical, Easily Operated, Suitable for lower capacities & Smaller diameters.

Manual Diameter Range Adjustment by means of two holes
AdjustableWheel rotation speed
PolyurethaneWheels absorbing shocks and vibrations
3mt.Power Cable
DC Motor
Standard Machine Colors:
• Chassis RAL 7011(Grey)
• Sheet Covers:RAL 3020(Red )
Power Supply: 220V – (2 phase)
One (1) Year Warranty (wearing parts out of warranty)

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

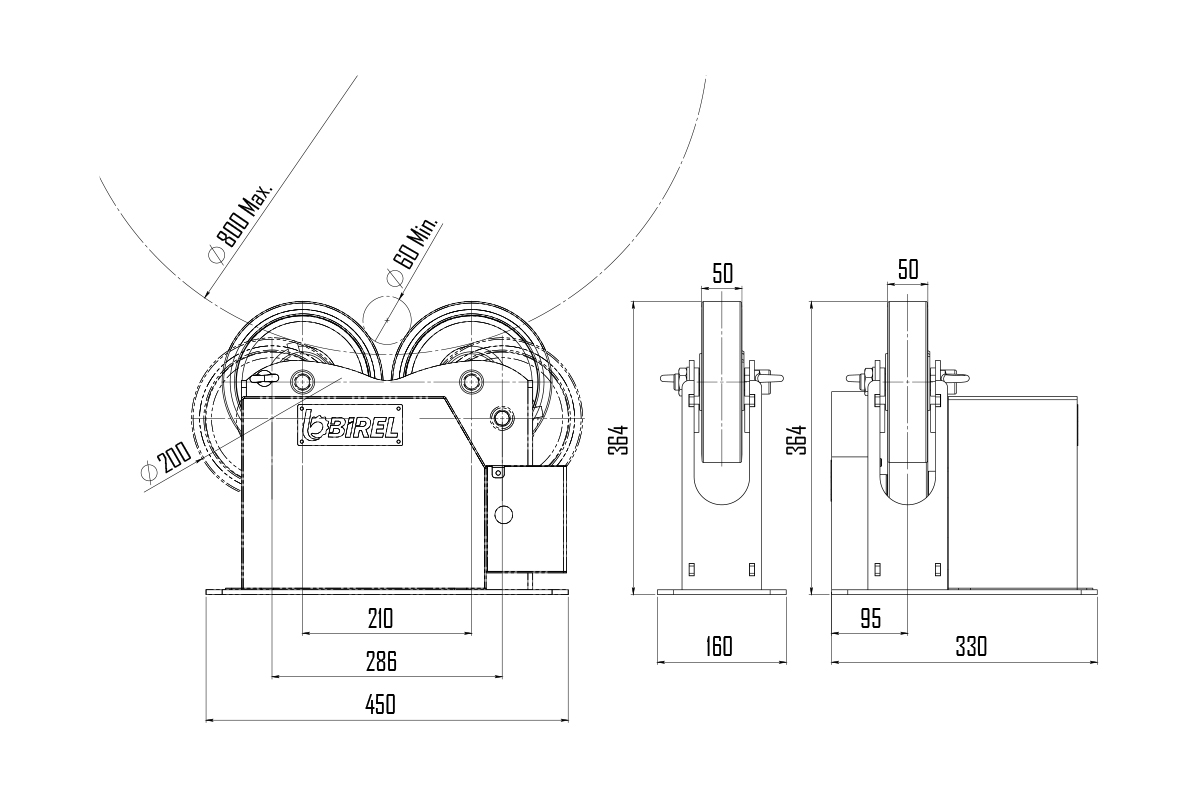

Mini-BCR	Sym	Unit	BCR-1,2	BCR-2
Capacity		ton	1,2	2
Max. Load (Drive Unit)		t/unit	0,6	1
Max. Load (Idler Unit)		t/unit	0,6	1
No. of Driwen	WD	No.	1WD	1WD
Rotation Speed	min-max	mm /min	60-1600	100-1420
Diameter Range	Ød min ØD max	mm	60-800	150-900
Wheel Diameter	ØF	mm	200	200
Wheel Width	G	mm	50	50
Wheel Coating			PU	PU
Length (Drive Unit)	A	mm	450	530
Length (Idler Unit)	B	mm	450	510
Width (Drive Unit)	E	mm	330	370
Width (Idler Unit)	C	mm	160	160
Height	H	mm	364	391
Motor Power	P	Watt	100	250
Weight	W	kg	60	90
