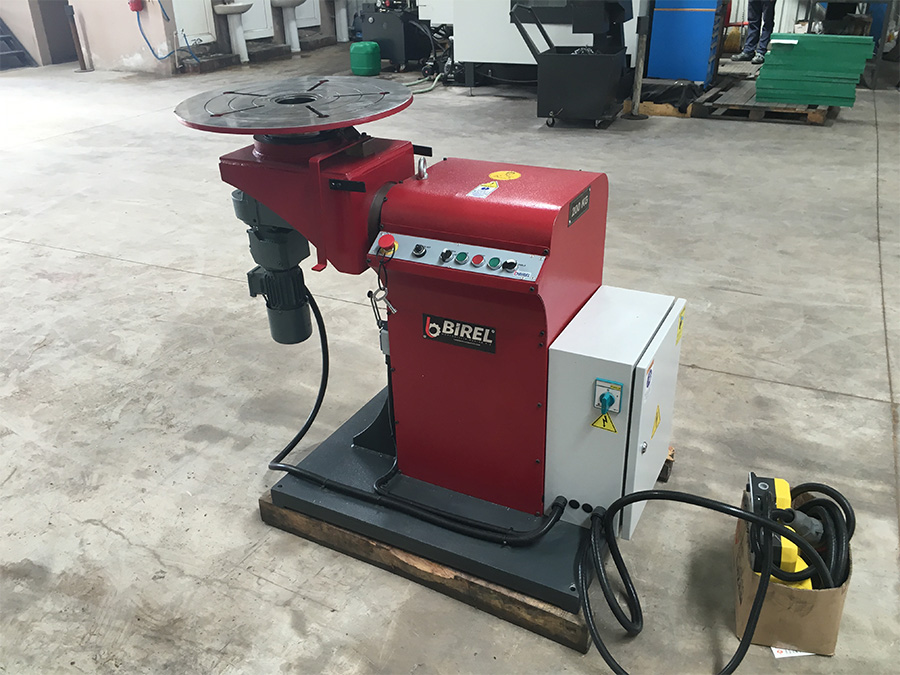

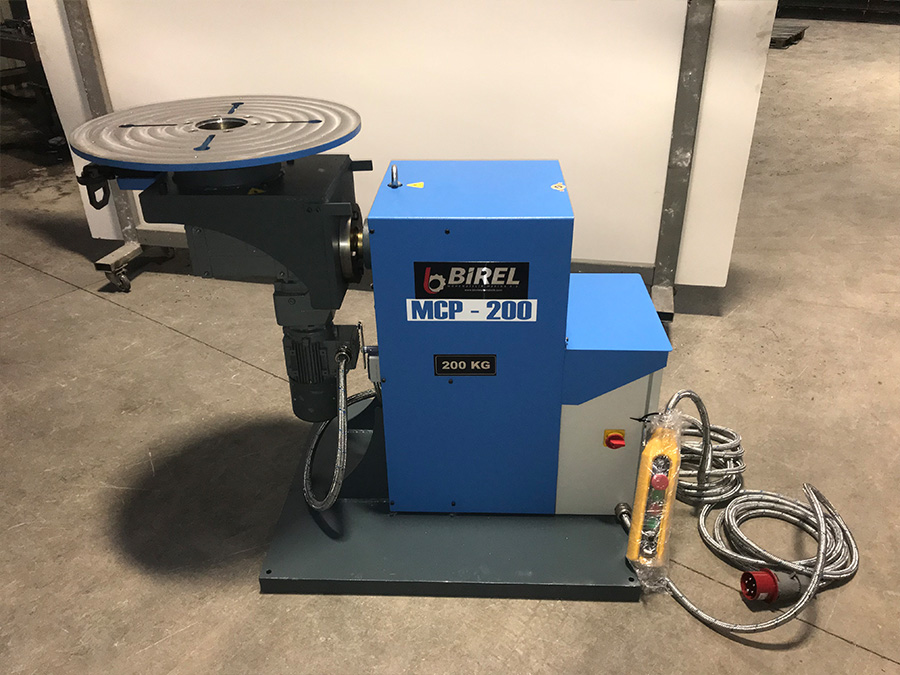

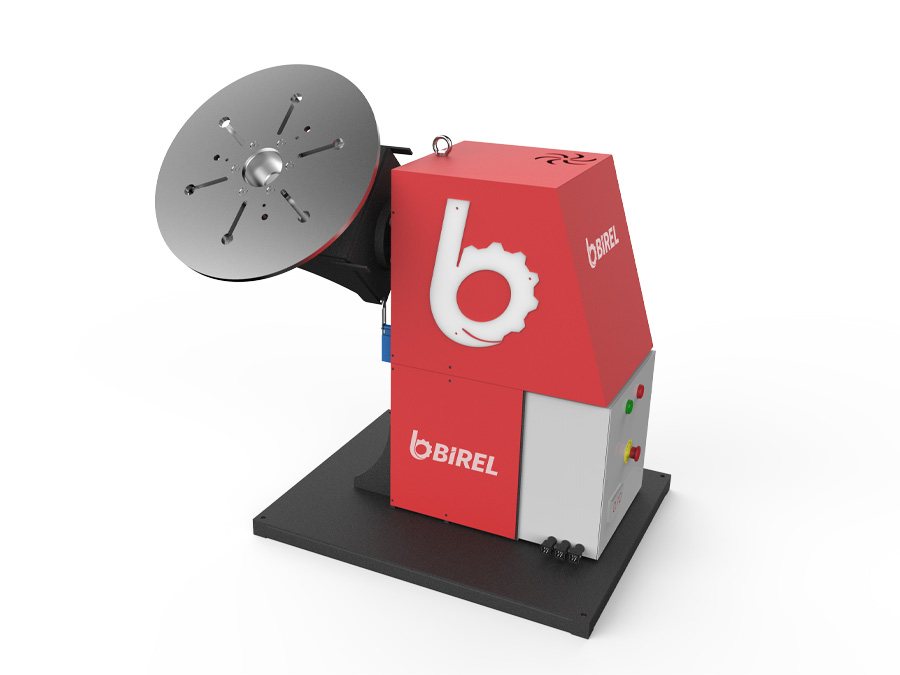

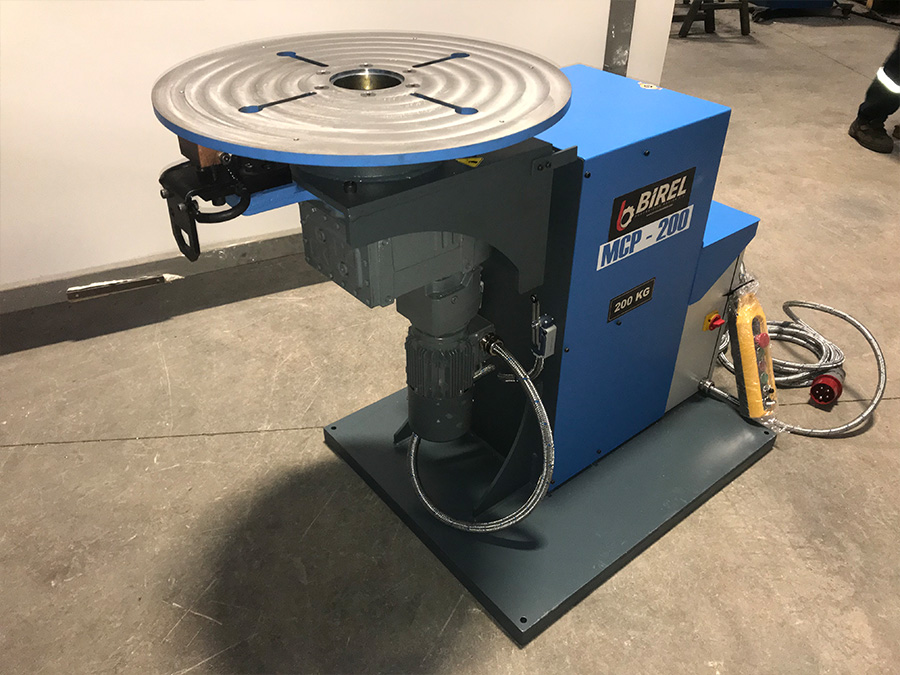

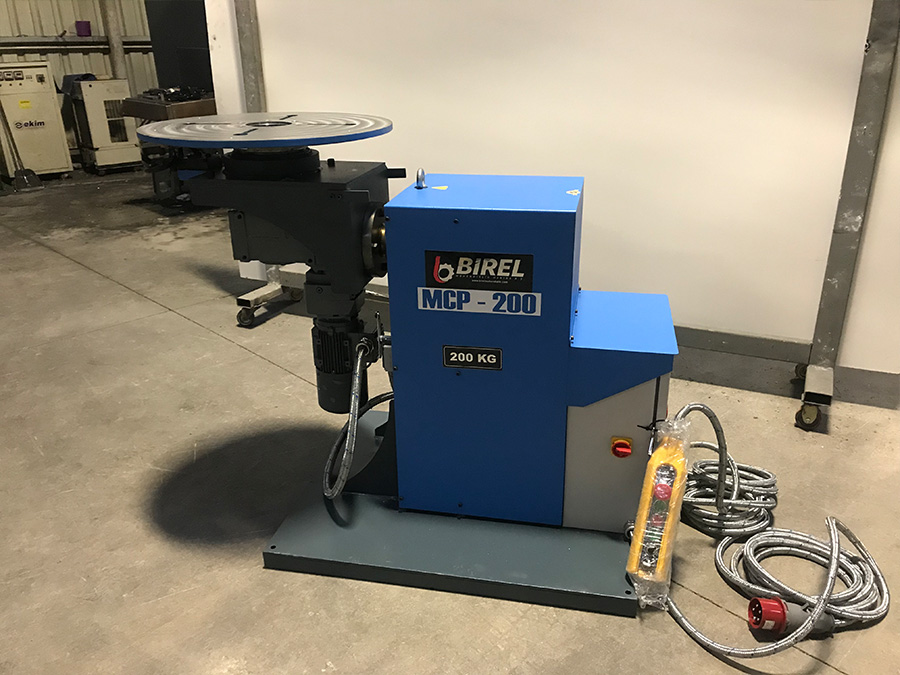

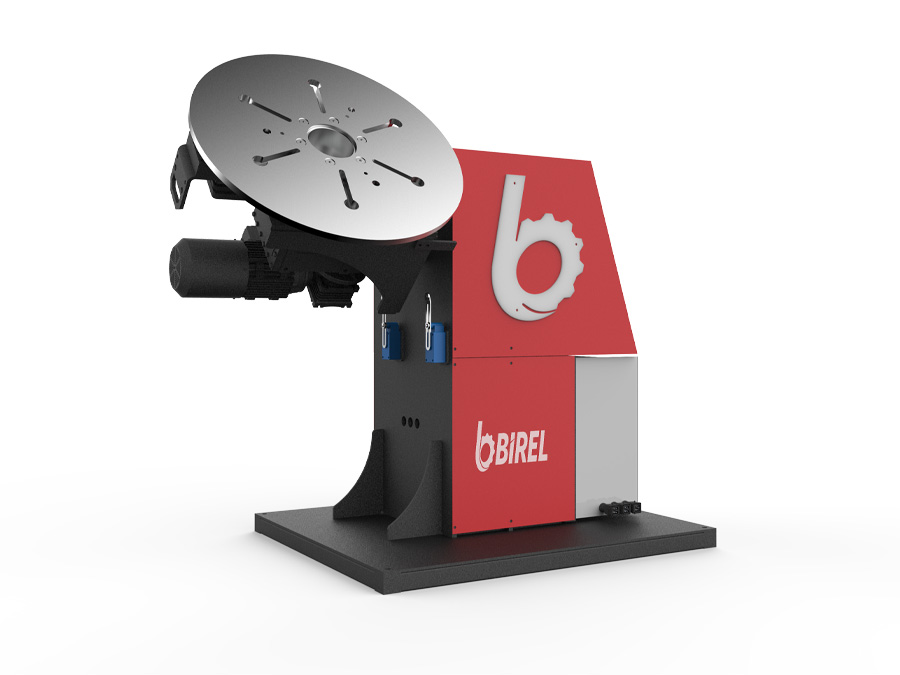

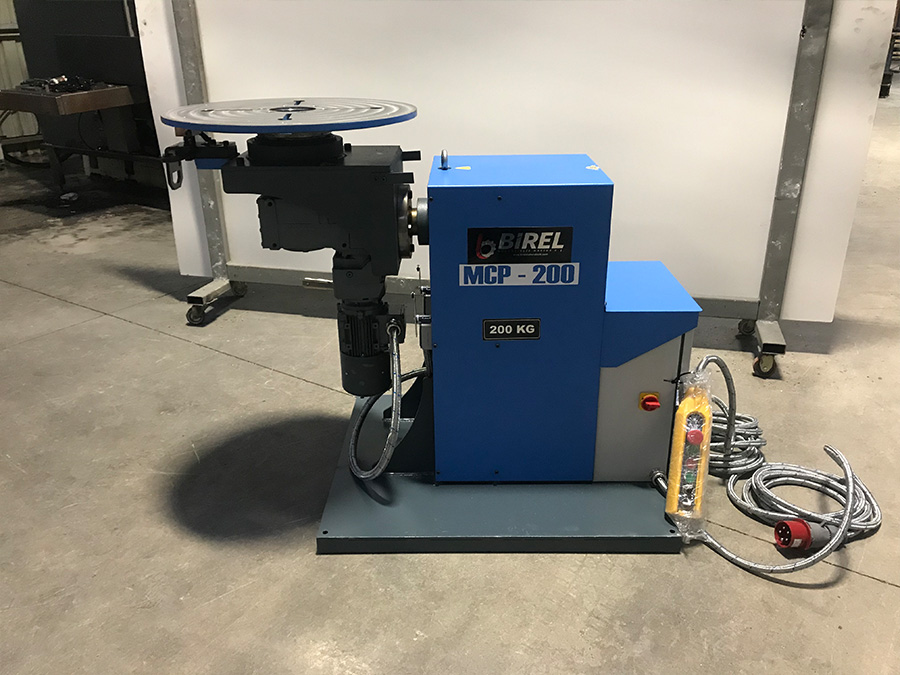

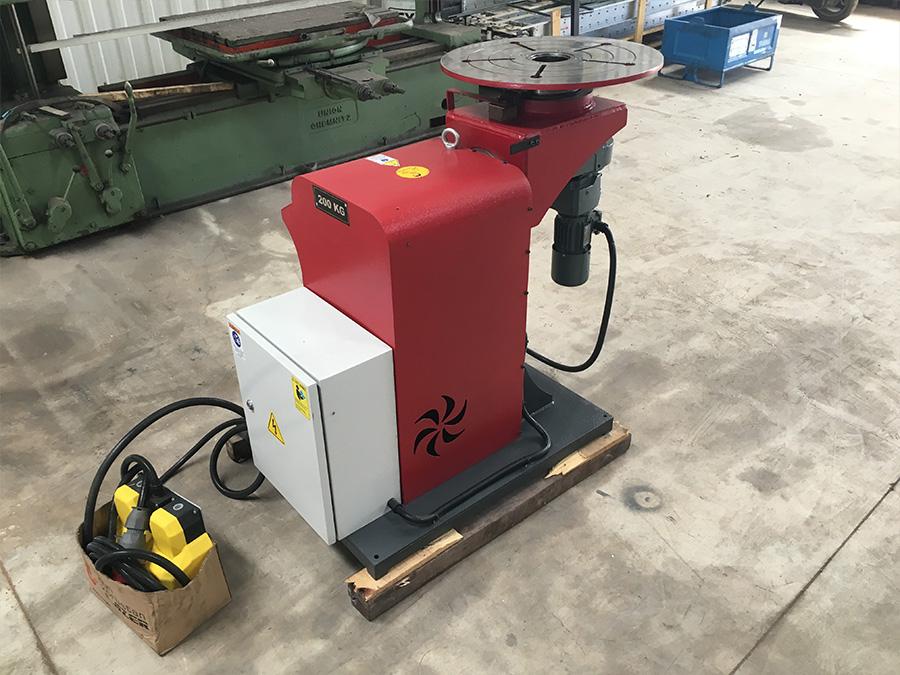

Welding Positioner – Mini BCP 020 (2AX)

Mini-BCP model Conventional Positioner is designed at best suitable configuration to supply function of worktable rotation & tilting of worktable angularly.
General Features
  • Mini-BCP model Conventional Positioner is designed at best suitable configuration to supply function of worktable rotation & tilting of worktable angularly.
  • Mini-BCP model Conventional Positioner as structuraly has the best protective system. Against heavy parts positioner should be anchored to the facility ground.

  • Mini-BCP model Conventional positioner, without considering of any geometric shape, all parts within dimensions has capability of positioning & forming suitable welding edge.

  • Mini-BCP model Conventional positioner, as structuraly are  constituted of Body,Motor ,Worktable rotation and tilting systems, electric panel and cable remote operator control.

  • The rotation & tilting movements  of Mini-BCP model Conventional Positioner are done by means of gear  transmission system.

  • Enable quick connection of work piece by means of  Slot Groove or T-Grooved worktable.

  • Mini-BCP Conventional positioner Work table is supplied as standard with T-Side Entry grooved.Optionally, If Worktable is requested as T-Grooved Thick Plate also can be manufactured as an option.

Standart Features
  • Round Worktable with Slots.
  • Welding Arc Group
  • 3 m. Command Cable with Hand Control Unit.
  • 3 m.Power Cable
  • Brake & Fan Cooled Motor (Asynchronous)
  • Mechanical gear movement for tilting.
  • Limit Switches to terminate movement.
  • Adjustable worktable rotation speed
  • Power Supply: 380V – (3 phase+Neutral +Earthing)
  • Standard Machine Colors:
    ChassisRAL 7011(Grey)
    Sheet Covers:RAL3020(Red )
  • Rotational Speed Dijital display on Electrical Cabinet
  • One (1) Year Warranty (wearing parts out of warranty)
Advantages
  • Birel Machinery asstandard provides Mini-BCP models in capacities of 50 • 100 • 200 kg..
  • In special conditions, Out of these standard capacities, Birel Machinery, according to customer standards & requirements, has the opportunity of manufacturing possibility at different capacities.
  • Motor with brake and forced fan cooling
  • Welding Arc Group
  • For any special request or project, Please do not hesitate to contact with us.
Optional Features
Round Worktable T-Side Entry Grooved Thick Table Plate

T-SE

Round Worktable T-Side Entry Grooved Thick Table Plate

MC

3-Jaw Manual Chuck

Double Foot Pedal with Stick and Stop (3m)

DFPSE

Double Foot Pedal with Stick and Stop (3m)

Single Foot Pedal (3m)

SFP

Single Foot Pedal (3m)

OHC

Overhead Hangable Control

Wireless Remote Control

WRC

Wireless Remote Control

PLC

PLC Control System with HMI Display

Brochures

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Ask From:
FAQ

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

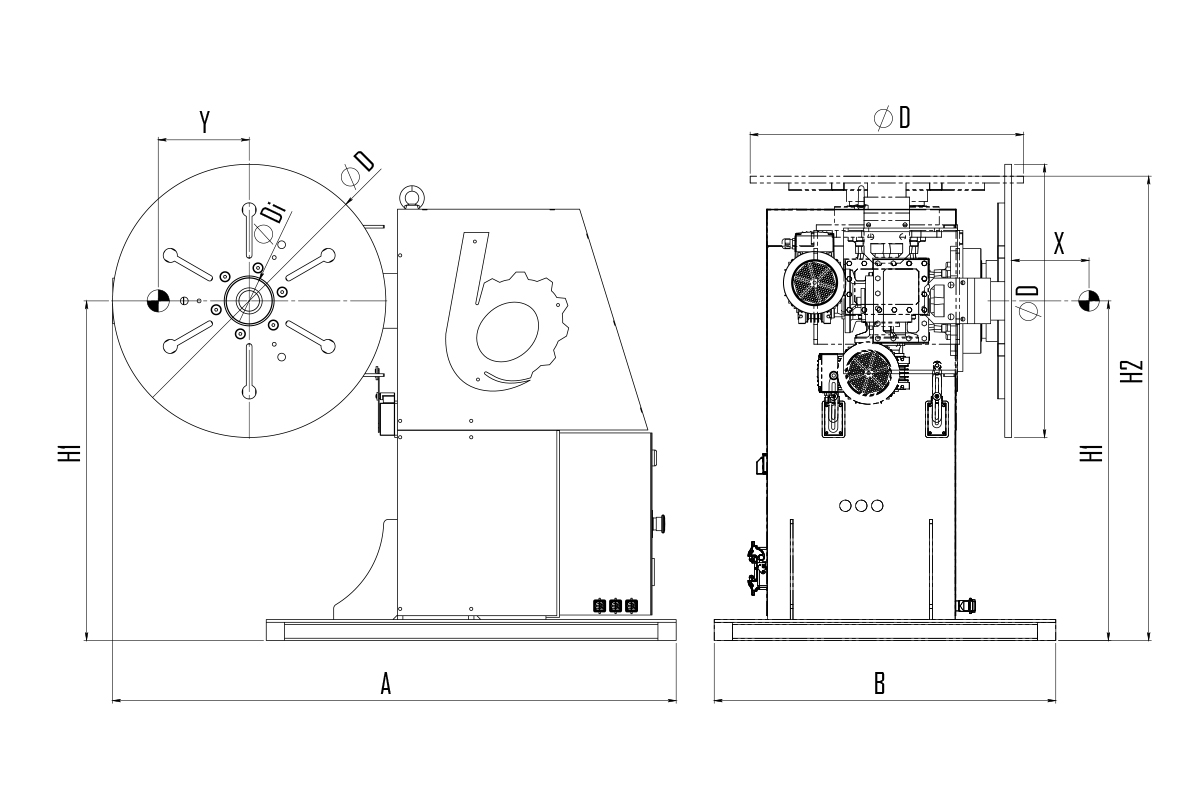

Technical Data

Mini-BCP 020

Sym

Unit

Mini-BCP 020

Loading Capacity

kg

200

Rotation Speed


rpm

0,22-2,2

Max. Rotational Torque

Nm

300

Tilting Angle

deg

90-0-90

Tilting Torque

Nm

685

Max.Welding Current

Amp

400

Offset Distance

X-Y

mm

150 - 150

Work Plate Diameter

ØD

mm

600

Hollow Shaft

ØDi

mm

100

Hollow Shaft Up to Depth

mm

60

Height (Table Vertical)

H1

mm

750

Height (Table Parallel)

H2

mm

1020

Length

A

mm

1240

Width

B

mm

750

Motor Power of Table

kW

0,25

Tilting

kW

0,25

Weight

kg

350
