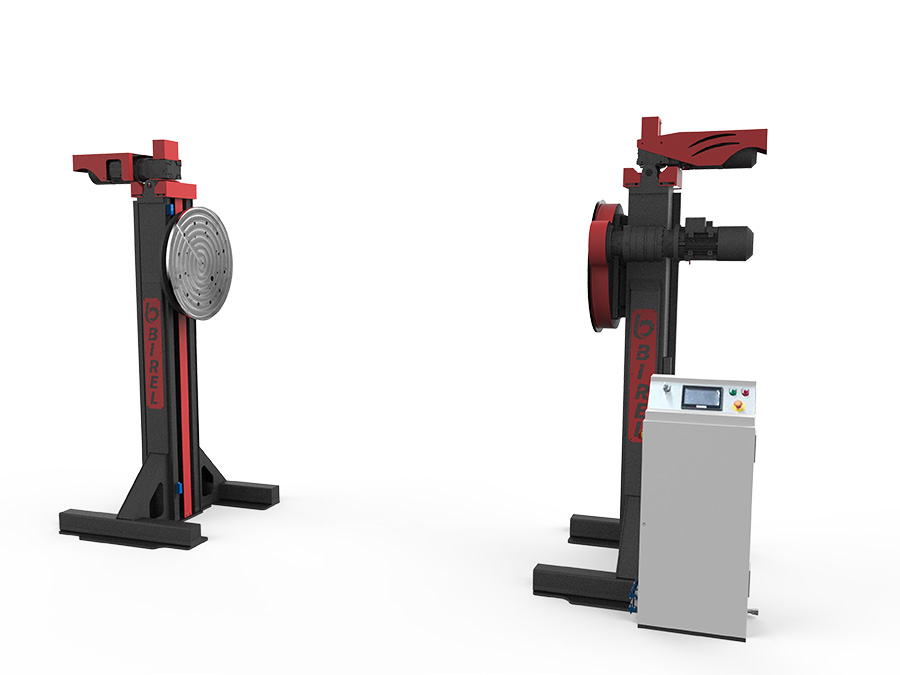

Headstock Tailstock Welding Positioner – BEM S (2AX)

BEMS-1AX model 1 axis Head Tail Stock Positioner, Regardless of any geometric shape within dimensions of the machine, In favour of being able to position and generating remarkable welding edges to all workpieces are qualified & ideal solutions.
General Features

BEM-S Ground Stationary Model Intended Usage ;

  • Suitable for workpieces not having different longitudinal dimensions.
  • Low-cost invesment.
  • Silent Operation.
  • Opportunity of Table Rotation Speed adjustment.

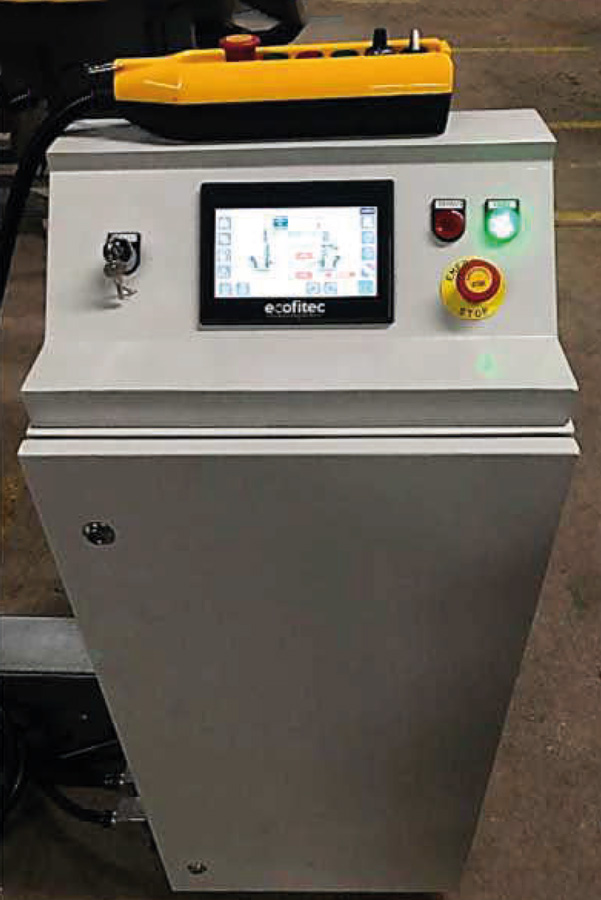

  • On HMI control unit, program (recipe) capacity and under each different Set Values
    (Height and Angle) defining opportunity available.
Optional Features
Wireless Remote Control

WRC

Wireless Remote Control

Easy Fixing Fixture Apparatus

EFFA

Easy Fixing Fixture Apparatus

Brochures

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Ask From:
FAQ

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

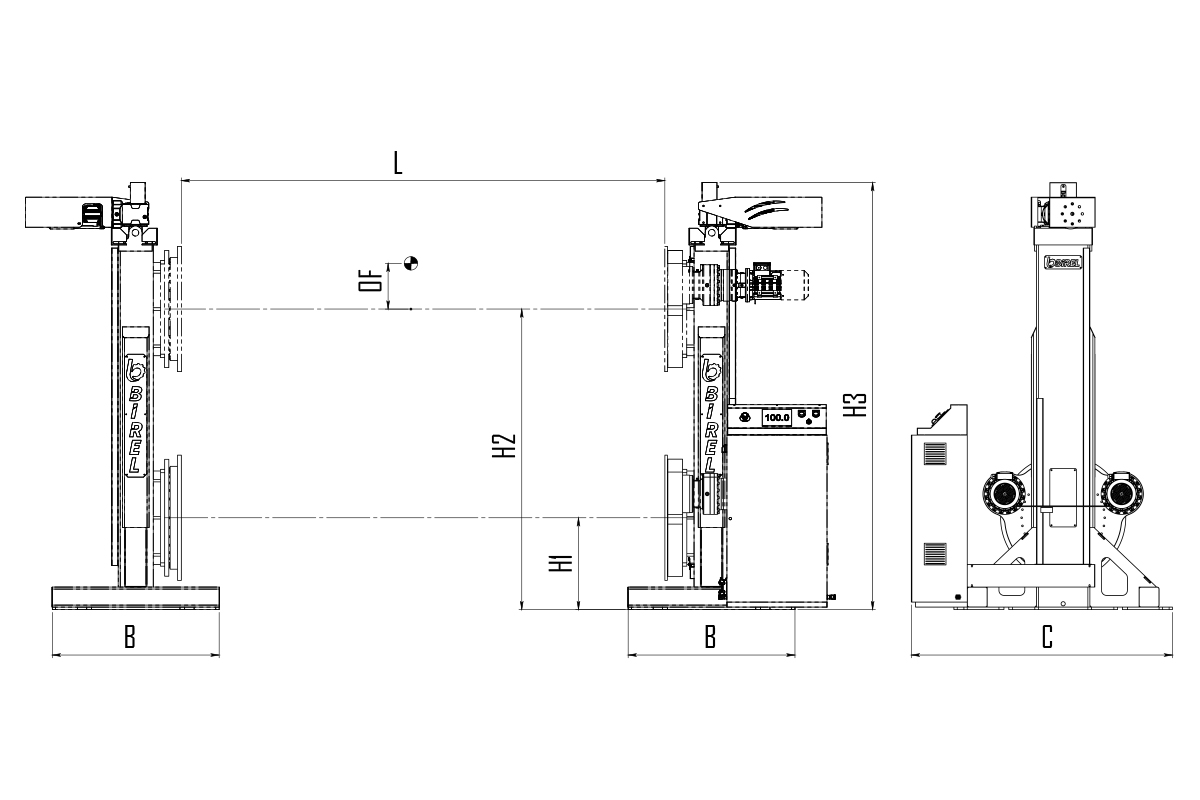

Technical Data

BEM-G

Sym

Unit

BEM-1,5S

BEM-3S

BEM-5S

BEM-6S

BEM-8S

BEM-10S

BEM-12S

Capacity

kg

1500

3000

5000

6000

8000

10000

12000

Rotation Speed

rpm

0,2 - 1,2

0,2 - 1,15

0,2 - 1

0,2 - 1,2

0,1-0,68

0,1-0,62

0,1-0,67

Up & Down Speed


mm/min

540

500

500

450

500

450

450

Max. Rotational Torque


Nm

5000

10150

17800

20550

24000

30000

36000

Up & Down Torque

Nm

200

326

446

490

862

950

950

Adjust, tilting axle height min.-max

H1-H2

mm

550-1550

550-1550

550-1800

550-1800

550-1800

550-1800

550-2000

Offset Distance

OF

mm

300

300

300

300

300

300

300

Table Plate Diameter

ØD

mm

575

650

750

750

750

850

1000

Max. Workpiece Diameter

mm

2800

2800

3600

3600

3600

3600

4000

Height

H3

mm

2240

2260

2560

2560

2580

2580

2790

Length

B

mm

850

850

1000

1000

1000

1000

1000

Width

C

mm

1455

1530

1570

1570

1570

1640

1680

Space Distance

L

mm

6000

6000

6000

6000

6000

6000

6000

Motor Power Of Table

kW

0,75 x 1

1,5 x 1

1,5 x 2

1,5 x 2

1,5 x 2

1,5 x 2

2,2 x 2

Motor Power of Lifting

kW

0,75 x 2

1,1 x 2

1,5 x 2

1,5 x 2

3 x 2

3 x 2

3 x 2

Weight

kg

1370

1540

1970

2000

2190

2370

2600

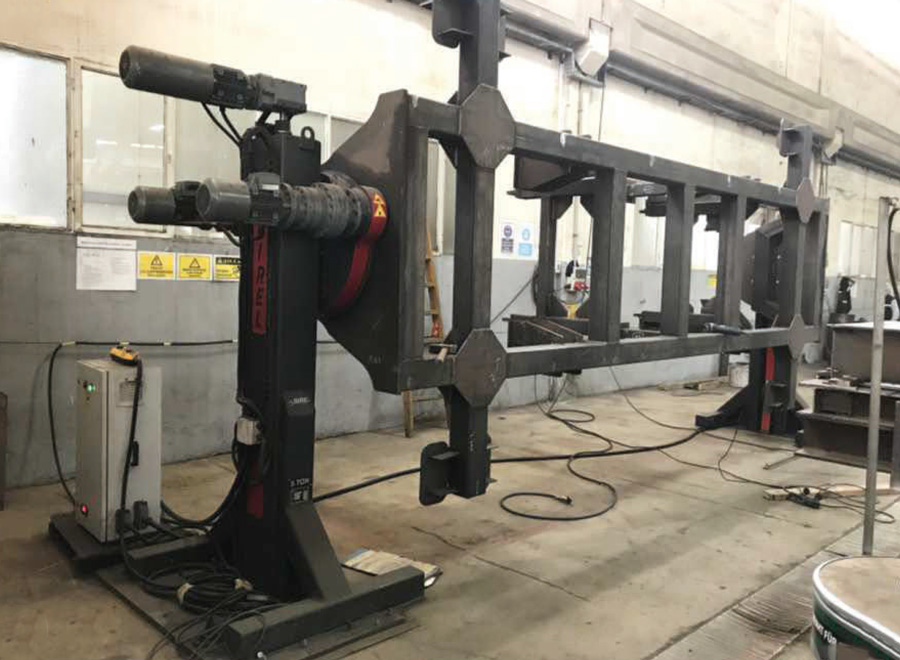

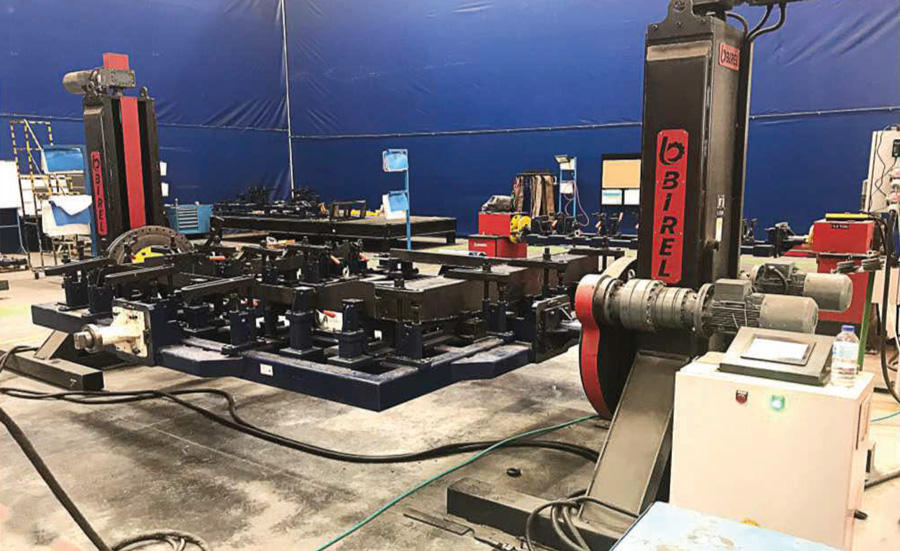

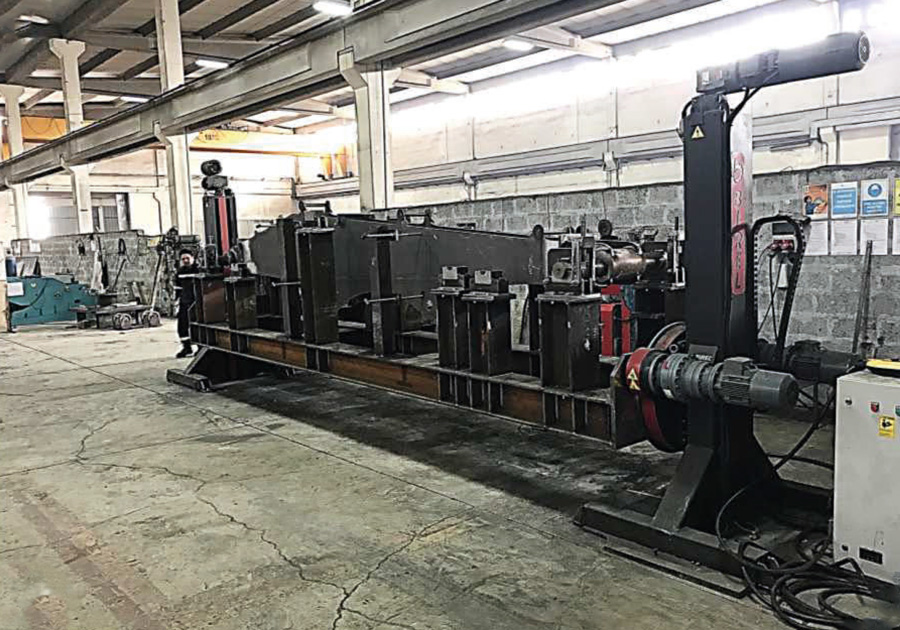

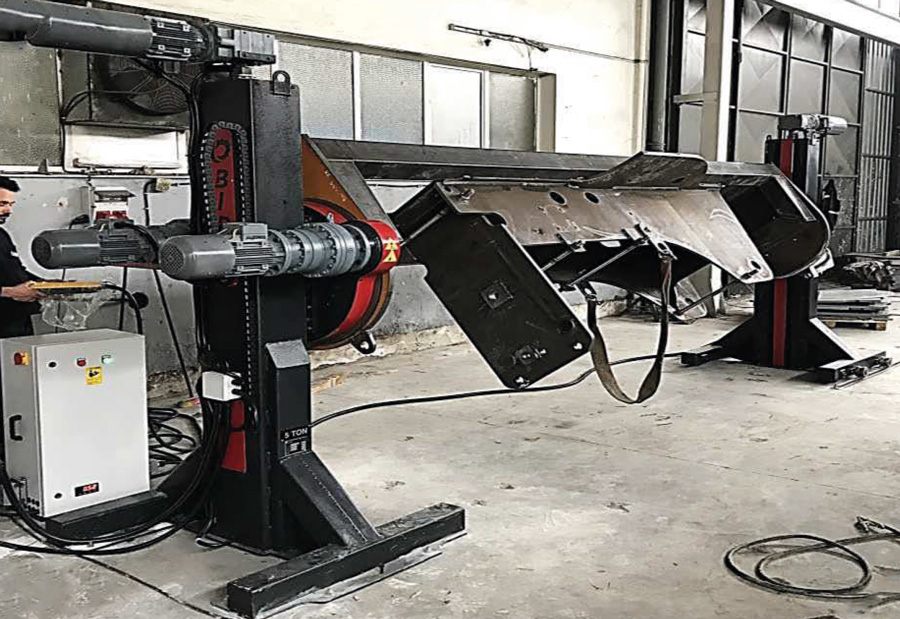

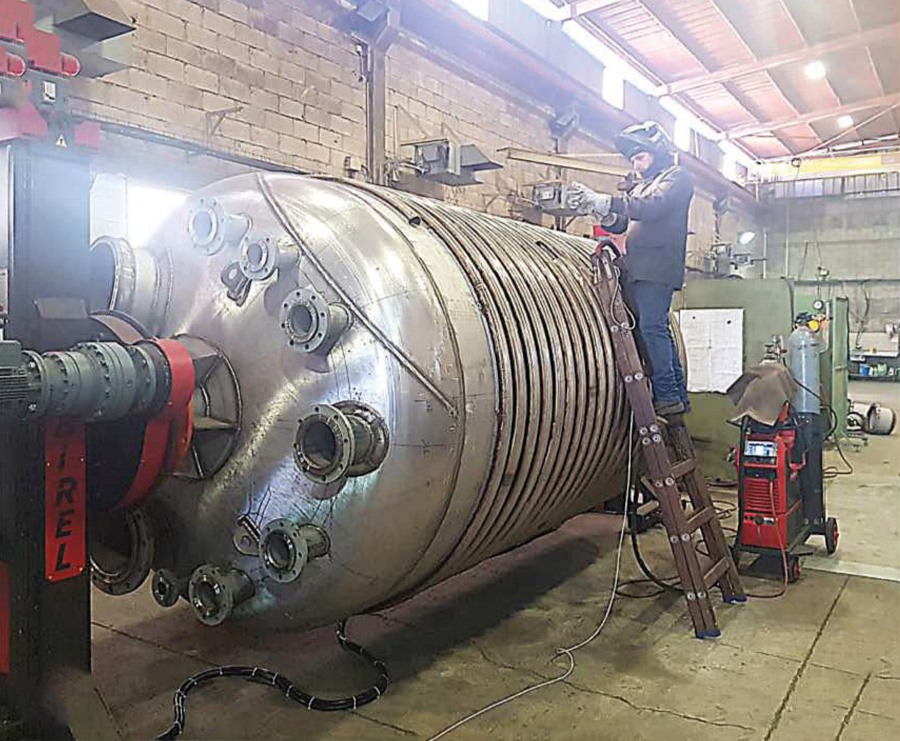

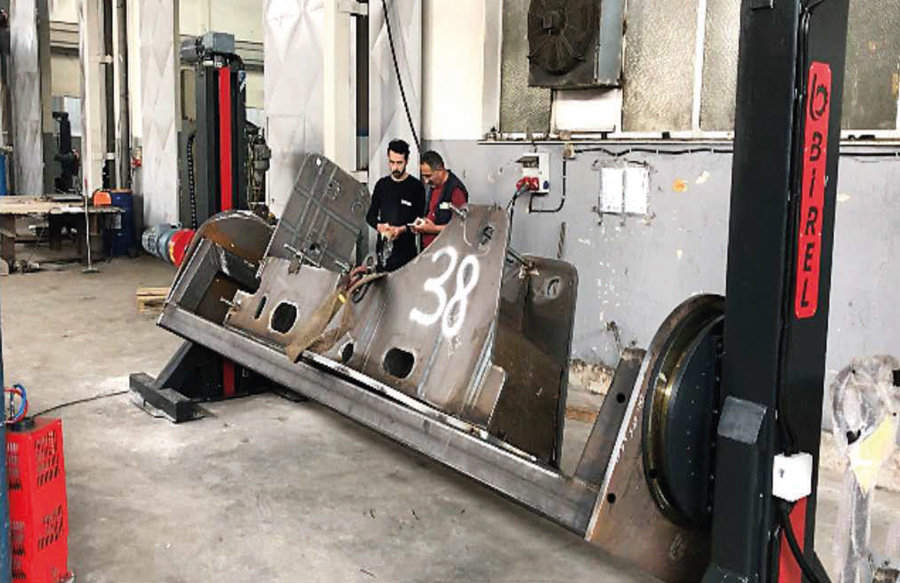

Photo Gallery
