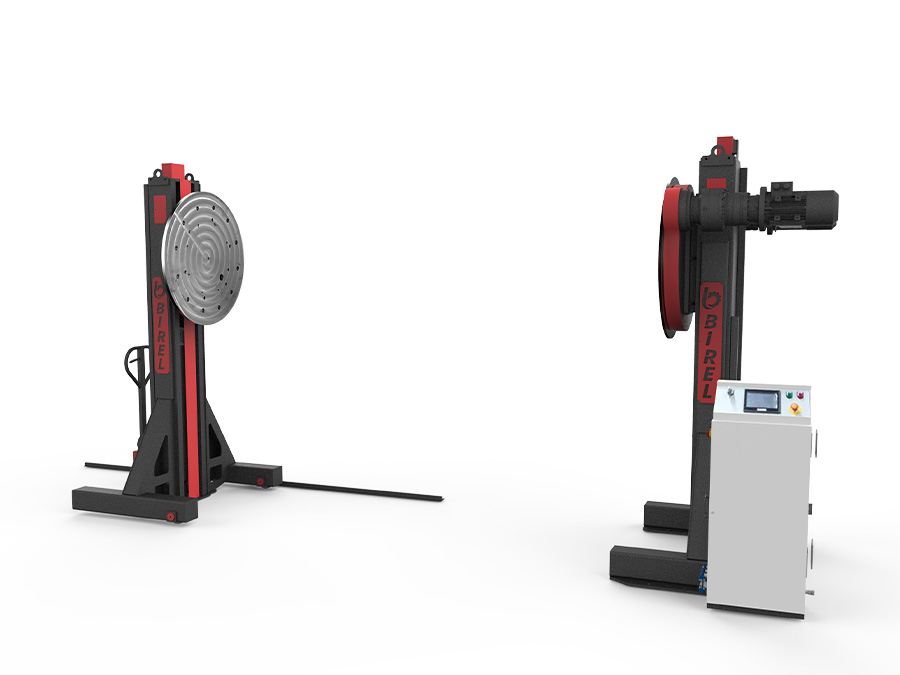

Headstock Tailstock Welding Positioner – BEM HG (2+1 AX)

Movable hydraulic lift Model Chassis Welding Positioner (2 + 1 AX)
General Features

BEM-HG Standard MOVABLE Hydraulic Lift Model Intended Usage ;

  • Hydraulic Model is long life.
  • Suitable for different workpieces having various longitudinal dimensions.
  • Suitable for dusty working environments.
  • Silent Operation.
  • Opportunity of Table Rotation Speed adjustment.
  • On HMI control unit, program (recipe) capacity and under each different Set Values (Height and Angle) defining opportunity available.
Optional Features
Double Foot Pedal with Stick and Stop (3m)

DFPSE

Double Foot Pedal with Stick and Stop (3m)

OHC

Overhead Hangable Control

Master Panel

MP

Master Panel

Wireless Remote Control

WRC

Wireless Remote Control

Easy Fixing Fixture Apparatus

EFFA

Easy Fixing Fixture Apparatus

Brochures

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Ask From:
FAQ

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

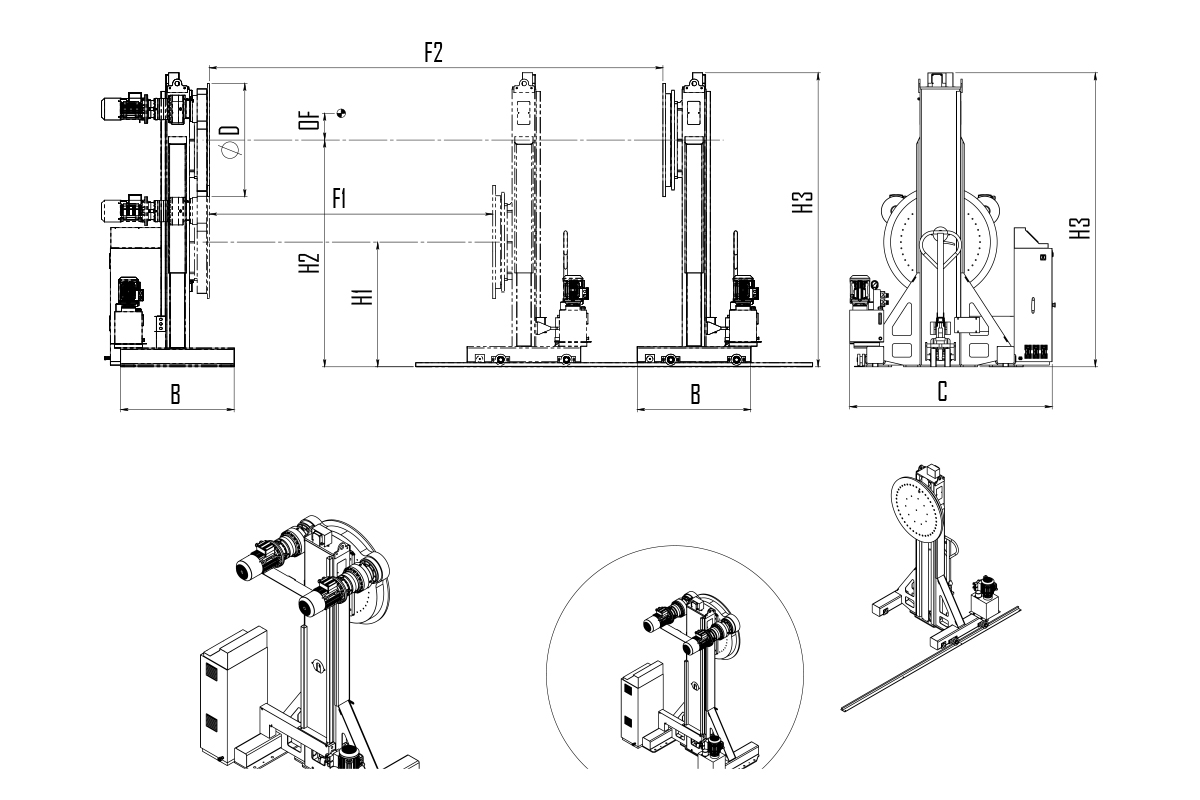

Technical Data

BEM HG

Sym

Unit

BEM-1,5. HG

BEM-3 HG

BEM-5 HG

BEM-6 HG

BEM-8 HG

BEM-10 HG

BEM-12 HG

BEM 15 HG

Capacity

kg

1500

3000

5000

6000

8000

10000

12000

15000

Rotation Speed

rpm

0,2 - 1

0,2 - 0,9

0,2 - 0,9

0,2 - 0,9

0,1 - 0,68

0,1 - 0,62

0,1 - 0,67

0,1 - 0,63

Up & Down Time

mm/min

2400

1500

930

930

770

770

770

770

Max. Rotational Torque

Nm

5000

10150

17800

20550

24000

30000

36000

42000

Min-Max Lifting Height

H1-H2

mm

550-1350

650-1550

900-1800

900-1800

9000-1800

900-1800

1100-2000

1100-2000

Offset Distance

OF

mm

300

300

300

300

300

300

300

250

Table Plate Diameter

ØD

mm

575

650

750

750

750

850

1000

1000

Max. Workpiece Diameter

mm

2700

3100

3600

3600

3600

3600

4000

4000

Height

H3

mm

2150

2350

2430

2430

2430

2430

2600

2600

Length

B

mm

850

850

1000

1000

1000

1000

1000

1000

Width

C

mm

1550

1600

1670

1670

1670

1740

1790

2120

Space Distance

L

mm

6000

6000

6000

6000

6000

6000

6000

6000

Rail Stroke

F1-F2

mm

4000-6000

4000-6000

4000-6000

4000-6000

4000-6000

4000-6000

4000-6000

4000-6000

Rail Type

By Birel

By Birel

By Birel

By Birel

By Birel

By Birel

By Birel

By Birel

Motor Power of Table

kW

0,75 x 1

1,5 x 1

1,5 x 2

1,5 x 2

1,5 x 2

1,5 x 2

2,2 x 2

2,2 x 2

Motor Power of Hydraulic Unit

kW

1,1 x 2

1,1 x 2

1,1 x 2

1,5 x 2

2,2 x 2

2,2 x 2

2,2 x 2

2,2 x 2

Weight

kg

1400

1570

2000

2030

2220

2400

2630

2910
