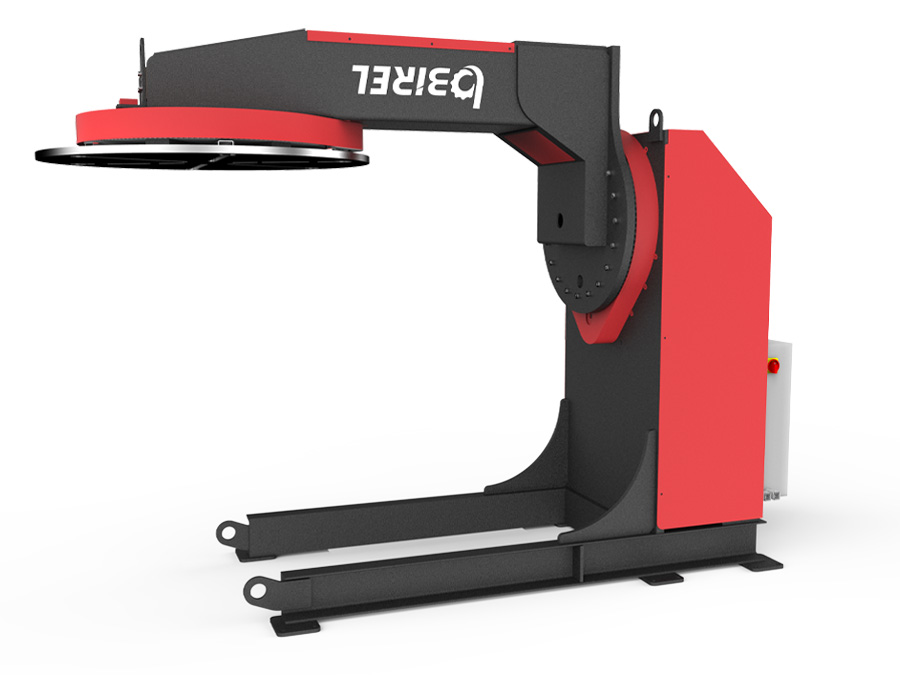

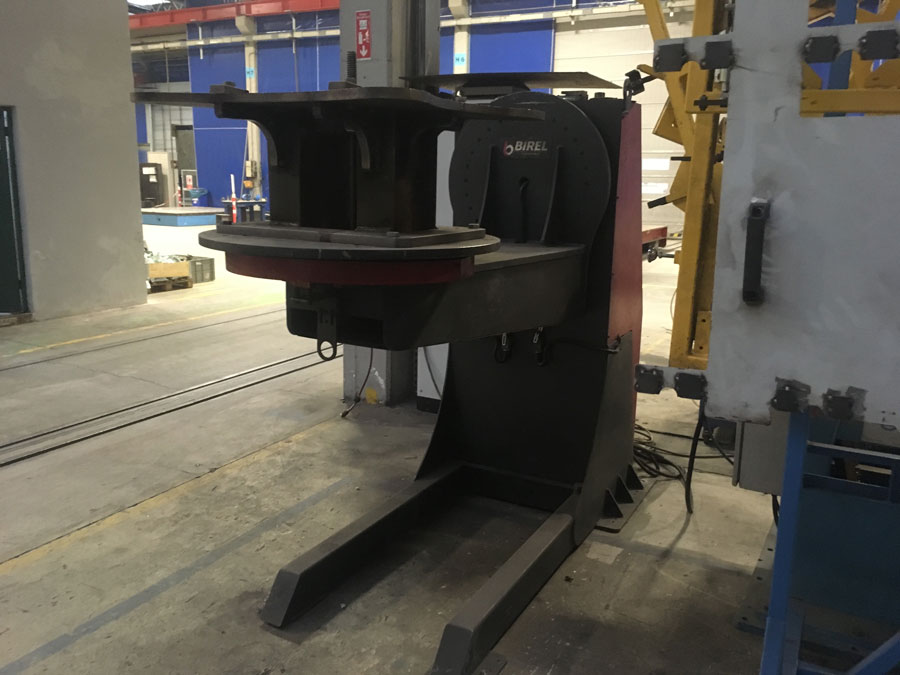

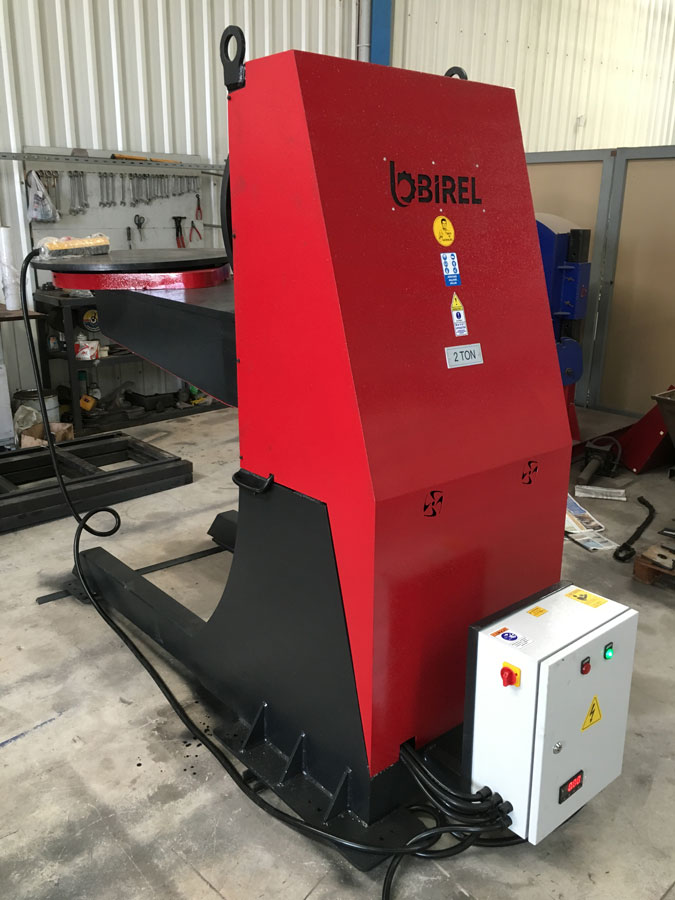

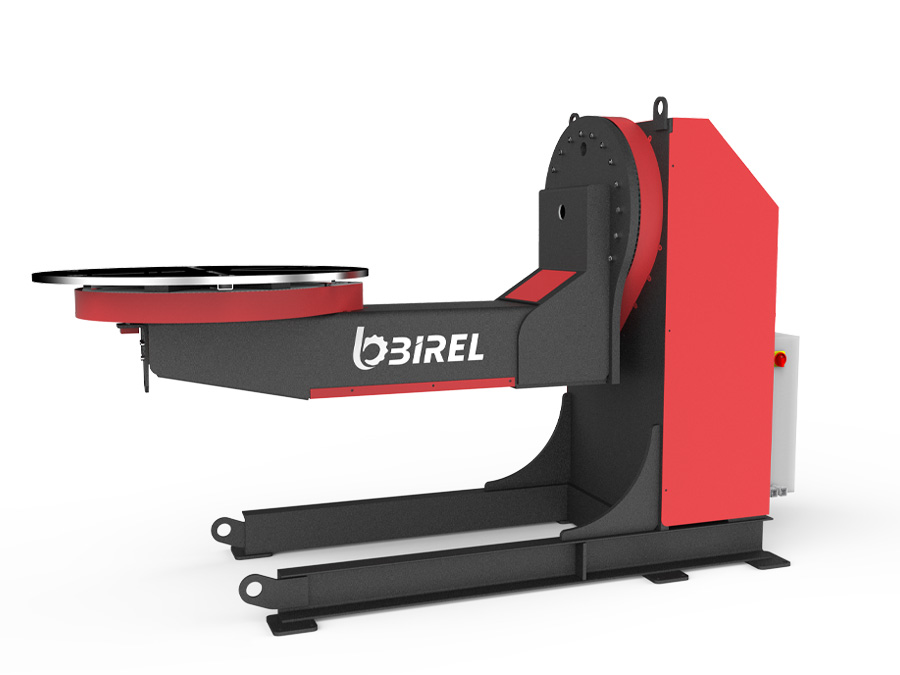

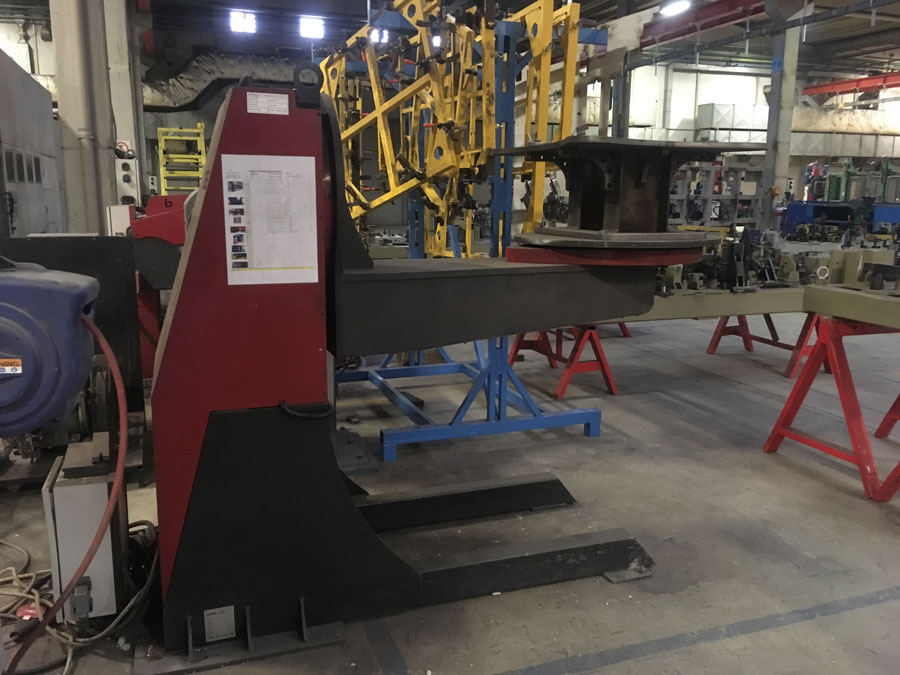

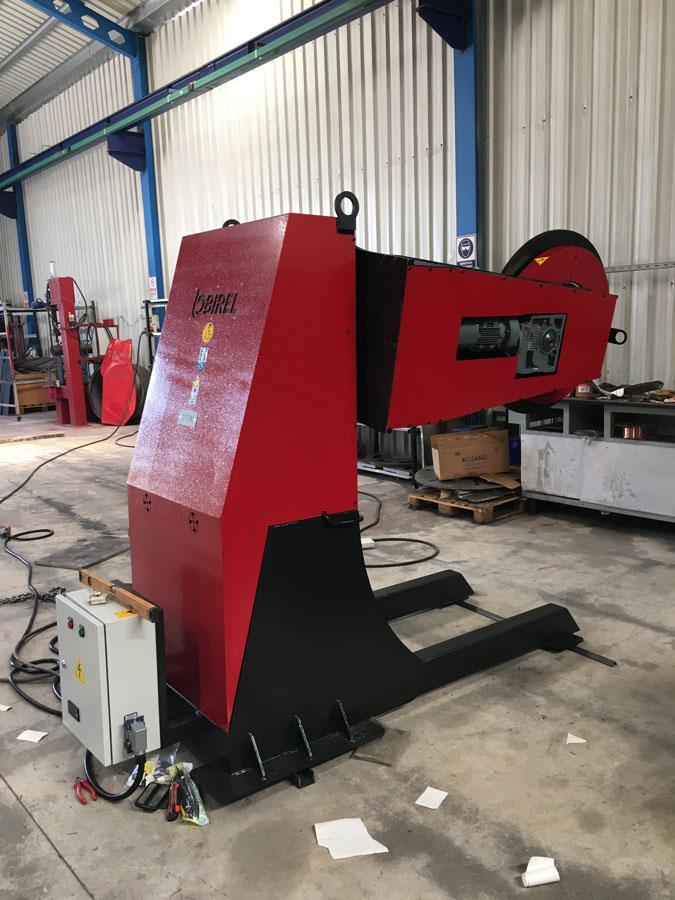

L Type Welding Positioner – BLP (2AX)

BLP-2AX model L-Type Positioner, Regardless of any geometric shape within dimensions of the machine, In favour of being able to position and generating remarkable welding edges to all workpieces are qualified & ideal solutions. Ensures utmostly capability of welding & likewise assembling at 360° degree of any required position.

BLP-2AX model L-Type Positioner, Regardless of any geometric shape within dimensions of the machine, In favour of being able to position and generating remarkable welding edges to all workpieces are qualified & ideal solutions.Ensures utmostly capability of welding & likewise assembling at 360° degree of any required position.
Designed in best suitable configuration to perform safe positioning of the workpieces having asymmetry & higher probability of overturn.
Avoids of crane operations that are part handling, rotating of parts, etc. during production, Provides the opportunity of using operator’s working power to use more effectively by minimizing time loss and it increases the effiency of work.
BLP-2AX model positioner with robust construction & easy controlling ability,Provides the opportunity of comfortable working to operator & improves the quality of welding.
The operators with BLP-2AX “L” type positioner, At center axis of worktable. workpiece can be precisely rotated over the command control at Clockwise (CW) or Counterclockwise(CCW) at specified speeds.

Capability of 360 degree worktable rotation.
Round Worktable with Slots.
Adjustable worktable rotation.
Rotational Speed Dijital display on Electrical Cabinet.
5 m. Command Cable.
5 m.Power Cable.
Brake & Fan Cooled Motor.
Welding Arc Group.
Standard Machine Colors:
• Chassis RAL 7011(Grey)
• Sheet Covers:RAL 3020(Red )
Power Supply: 380V – (3 phase+Neutral +Earthing).
One (1) Year Warranty.

Birel Machinery as standard provides BLP-2AX models in capacities of 0,5 • 1 • 2 ton.
Welding Arc Group
Motor with brake and forced fan cooling.
Allowquick connectionofworkpieces byusing “ T ” slots on worktable(Optional)
In special conditions, Out of these standard capacities, Birel Machinery, according to customer standards & requirements, has the opportunity of manufacturing possibility at different capacities.

T-SE

Round Worktable T-Side Entry Grooved Thick Table Plate

3-Jaw Manual Chuck

OC-T

Octagonal Welding Table

BGR

3-Jaw Manual Pipe Gripper

DFPSE

Double Foot Pedal with Stick and Stop (3m)

OHC

Overhead Hangable Control

WRC

Wireless Remote Control

PLC

PLC Control System with HMI Display

TO-WE

Welding Torch Stand

EN

Download Product Brochure

TR

Ürün Broşürünü İndir

Need help finding a right welding machine?

We will gladly assist you in making the right decision to achieve your business goals.

Are You The Manufacturer Or A Trading Company?

BIREL ENGINEERING is the manufacturing factory which found in 2014, Bursa / Türkiye.

Can This Machine Be Customized According To My Requirements?

Yes , We have many kinds of machines for different requirements. Also can customize specially.

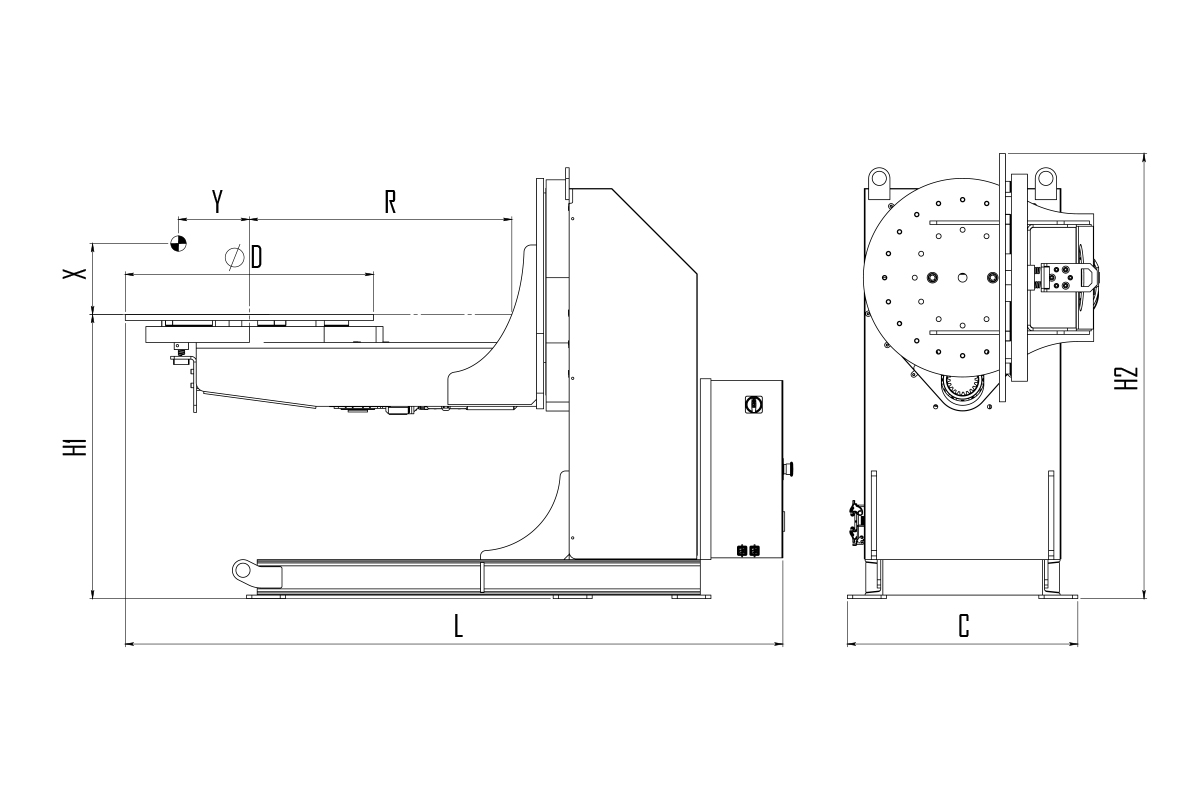

BLP-2AX	Sym	Unit	BLP 0,5 - 2AX	BLP 1 - 2AX	BLP 2 - 2AX
Loading Capacity		kg	500	1000	2000
Working Radius	R	mm	700	1000	1200
Offset Distance	X-Y	mm	300-150	300-150	300-150
Table Diameter	ØD	mm	700	850	900
Max. Rotational Torque		Nm	750	1500	3050
Work Table Speed		rpm	0,15-1,5	0,15-1,4	0,15-1
Max. Tilting Torque		Nm	1100	1750	4450
Tilting Speed		rpm	1,4	1	0,7
Max. Welding Current	A	Amp	400	700	700
Table Height (at 0⁰)	H1	mm	800	870	980
Total Height (at 90⁰)	H2	mm	1260	1450	1530
Total Length	L	mm	1860	2250	2720
Total Width	C	mm	650	720	850
Motor Power of Table		kW	0,37	0,37	0,55
Motor Power of Tilting		kW	0,37	0,37	0,55
Weight		kg	590	820	1240
